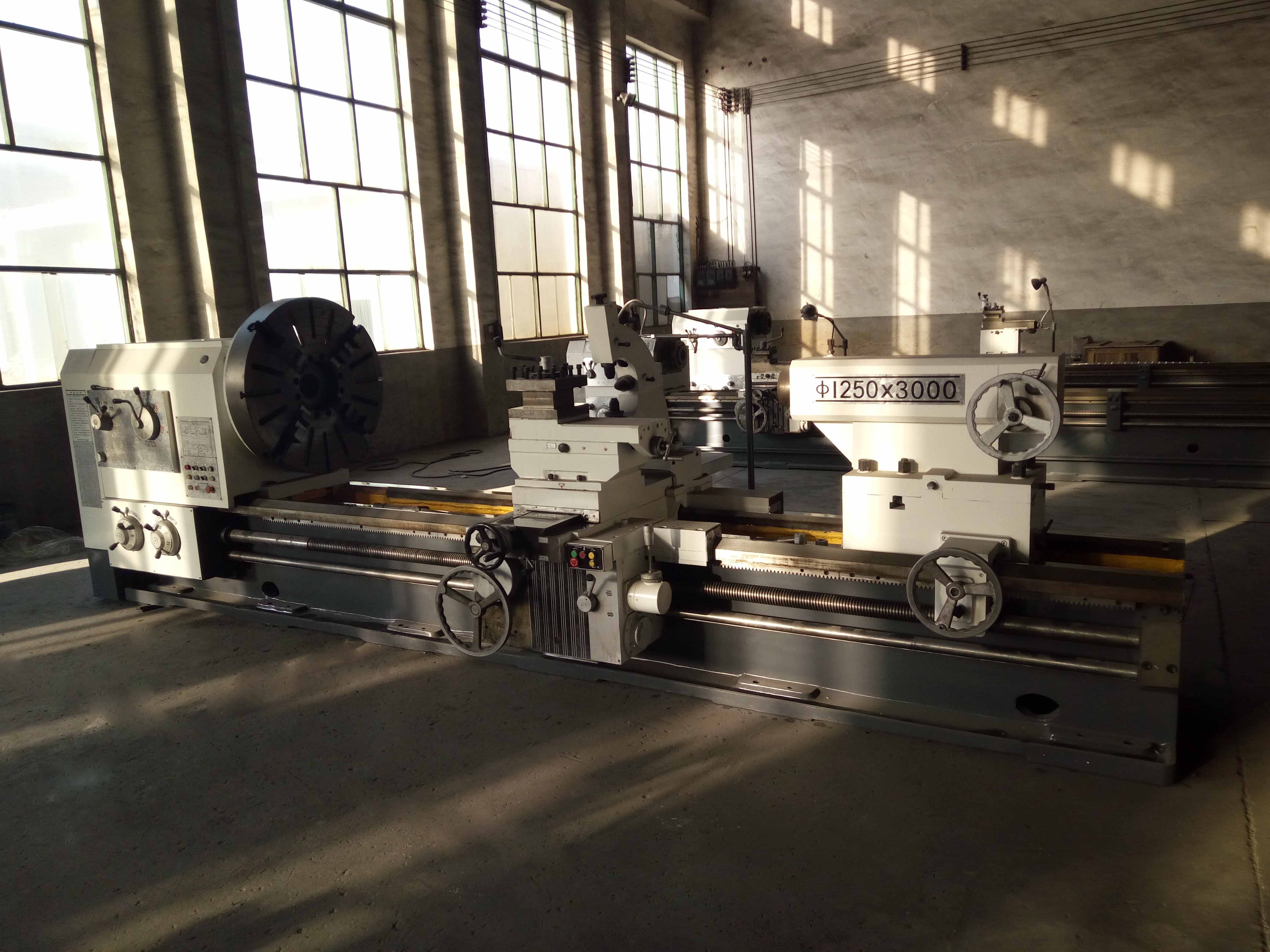

    CW61100B/CW61125B Conventional horizontal metal turning lathe machine for sale in lowest price


    Specifications

    All our lathes and machines contain ISO9001,CE certificates, and they are famous all over the world..

    CW Series Horizontal Lathes/CW61100B (Guide rail width is 755mm, 6tons load capacity)


    This machine is characterized by its large power, high rigidity, high spindle speeds in a wide variety and is suitable for heavy and high speed cutting operations. The machine is suitable for facing , turning external and internal cylindrical surfaces as well as cutting of a wide range of different metric, English, module and diametral pitch threads, It can be used for drilling, trepanning and boring operations as well. Braking and rotating-direction change of spindle is controlled by hydraulic power with sensitive and reliable performances. By the manipulation of a push button spindle speed change can be made to a higher or lower step without stopping the machine. Lubrication in the headstock is effected by forced pressure oil while spindle speed ranges are furnished for selection by user when placing order. The apron is provided with a safety device to protect the machine against overloading. The top slide may be operated by power for cutting short taper surface. The combination of longitudinal feed of the saddle and feed of the slide facilitates the cutting of a long taper surface on this machine. All guideways on the bed are hardened to prolong their service life. The centralized levers can be easily and conveniently operated.


    CW61100B/CW61125B
    Max. swing diameter over bed1000/1250mm
    Maximum length of the workpiece8000mm
    Max swing diameter over carriage610/850mm
    Max swing diameter over gap
    Length of the gap
    Spindle bore130mm
    Taper in spindle noseDukes140
    Number of speedsforward21kinds
    reverse12kinds
    Spindle speed range (it could be manufactured according to the clients specific requirements)

    n1*


    forward3.15-315r/min
    reverse3.5-278r/min

    n2


    forward2-200r/min
    reverse2.24-178r/min
    Range of feeds per spindle rotary56 kinds
    Longitudinal0.1-12mm
    cross0.05-6mm
    Top slide0.025-3mm
    Thread pitch scope of the metric system44Kinds 1-120
    Englishmen scope Thread31Kinds 24-1/4t.p.i
    Range of module threads45Kinds 0.5-60mm
    Range of diametral pitch threads38Kinds 1/2-56DP
    On the itinerary largest bedMaximum length of the workpiece cut 50mm
    Carriage ( Two sets are fitted for machine with center distances of 11,000 mm)
    max cross travel of lower slide520mm
    Max travel of mid slide
    Max travel of top slide300mm

    Rapid traverse speed of tool post


    Longitudinal3740mm/min
    cross1870mm/min
    Mid slide935mm/min
    Diameter of tailstock quill160mm
    Max travel of quill300mm
    Taper in bore of tailstock quillMorse No.6
